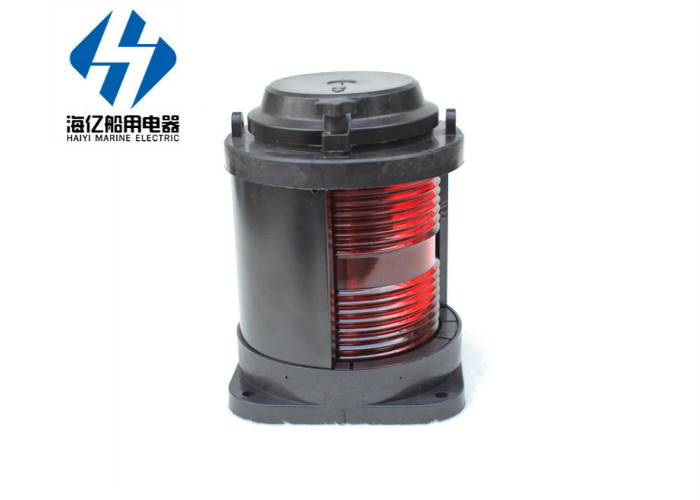

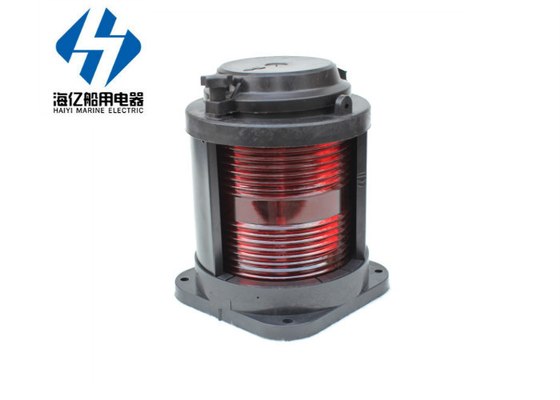

CXH2-21P Plastic Marine single deck red navigation port light
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Part: | Marine Light,navigation Light | Color: | Red |
|---|---|---|---|
| Material: | PC,Polycarbonate | Product Name: | Marine Navigation Light,Marine Single-deck Port Light |
| Weight: | 1.2kg | Application: | Marinas,markers And Other Marine Navigation Area |
| Protection Class: | IP56 | Visibility: | 2n.m |
| Usage: | Waterproof,Yacht/boat/ship/marine | Power: | 25W |
| Voltage: | 12V/24V | Level Arc: | 112.5 Degree |
| Light Source: | 18*LEDs | Size: | DIA152* H200 |
| Lamp Holder: | BAY15d | Waterproof: | 100% Waterproof |
CXH2-21P Plastic Marine single deck red navigation port light
The scope of application:
Applied to the ships with the length 12m or above 12m (less than 50m) as lamp signal liaision when night navigation.
Applied to the ships with the length 12m or above 12m (less than 50m) as lamp signal liaision when night navigation.
Product Characteristics:
The shell is made of high-strength engineering plastics PA+GF injection,lampshade adopts injuection of PC,lens hood adopts the goods quality stainless steel.
The signal lights have the whole saal structure, it is waterproof under the bad environment.
The signal lights choose the special signal bulb which conform to the ship crterion, it can replace bulb as open the up cover.
The signal lights can work normally under the temperature of -30 to +50°C
The shell is made of high-strength engineering plastics PA+GF injection,lampshade adopts injuection of PC,lens hood adopts the goods quality stainless steel.
The signal lights have the whole saal structure, it is waterproof under the bad environment.
The signal lights choose the special signal bulb which conform to the ship crterion, it can replace bulb as open the up cover.
The signal lights can work normally under the temperature of -30 to +50°C
Adopt standards:
Conform to international regulation for preventing collision at sea, 1972 and grade entry norms for steel ships.
Conform to International standard IEC60598-1-2008.
Conform to the national standard of marine electric signal light's technical condition GB/T 3028-1995.
