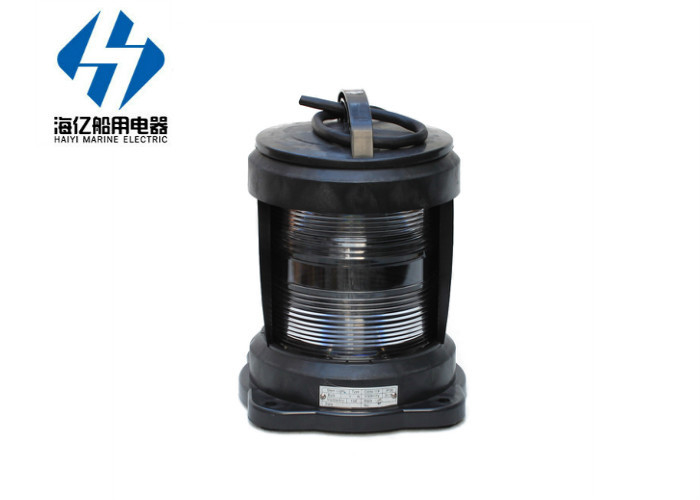

Marine Navigation Lights Plastic CXH4 - 11P Marine Single Deck Navigation Signal Stern Light
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Part: | Marine Light,navigation Light | Color: | White |
|---|---|---|---|
| Material: | PC,Polycarbonate | Product Name: | Marine Navigation Light,Marine Single-deck Stern Light |
| Weight: | 2.6kg | Application: | Marinas,markers And Other Marine Navigation Area |
| Protection Class: | IP56 | Visibility: | 3n.m |
| Usage: | Yacht/boat/ship/marine | Power: | 60W |
| Voltage: | 220V | Level Arc: | 135° |
| Light Source: | P28S | Size: | D200mm * H268mm |
| Lamp Holder: | P28S | Waterproof: | 100% Waterproof |
Marine Navigation Lights Plastic CXH4 - 11P Marine Single Deck Navigation Signal Stern Light
The scope of application:
Applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation.
Products characteristic:
1.The shell is made of high-strength engineering plastic PA+GF injection, lampshade adopts injection of PC, lens hood adopts the good quality stainless steel.
2.The signal lights have the whole seal structure, it is waterproof under the bad enviroment.
3.The signal lights choose the special signal bulb which conform to the ship criterion, it can replace the bulb as open the up cover.
4.The signal lights can work normally under the temperature -30°c~55°c
Adopt standard:
1.Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA, 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.
1.Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA, 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.
2.Conform to the International standard IEC60958-1-2008.
3.Conform to the National standard of marine electric signal light's technical condition GB/T3028-1995.
Production authentication:
1.Approved by the CCS(China Classification Society),approved by ZY of China Fishery Inspection.
2.Passed the authentication of CE.
3.Approverd by Germanischer Lloyd "GL".
4.Approved by MED/EC.
5.The patent No. is ZL2009 2019 9529.5
