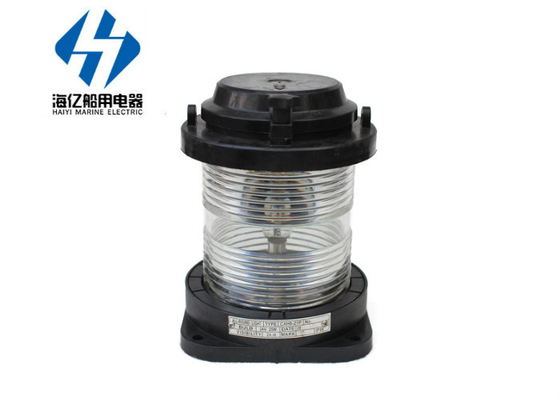

Marine Navigation Lights Polycarbonate CXH6 - 21P IP56 Marine Single deck Navigation Signal All-round Light
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Part: | Marine Light,navigation Light | Color: | Red Green Transparent |
|---|---|---|---|
| Material: | Polycarbonate | Product Name: | Marine All-round Single-deck Light |
| Weight: | 1.2kg | Application: | Marinas,markers And Other Marine Navigation Area |
| Protection Class: | IP56 | Visibility: | 2n.m |
| Usage: | Yacht/boat/ship/marine | Power: | 25W |
| Voltage: | 24V | Level Arc: | 360° |
| Size: | D152mm * H200mm | Lamp Holder: | B15d |
| Waterproof: | 100% Waterproof |
Marine Navigation Lights Polycarbonate CXH6 - 21P IP56 Marine Single deck Navigation Signal All-round Light
he scope of application:
Applied to the ships with the length 12m or above 12m (<50m) as lamp signal liaison when night navigation.
Products characteristic:
1.The shell is made of high-strength engineering plastic PA+GF injection, lampshade adopts injection of PC, lens hood adopts the good quality stainless steel.
2.The signal lights have the whole seal structure, it is waterproof under the bad enviroment.
3.The signal lights choose the special signal bulb which conform to the ship criterion, it can replace the bulb as open the up cover.
4.The signal lights can work normally under the temperature -30°c~55°c
Adopt standard:
1.Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA, 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.
1.Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA, 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.
2.Conform to the International standard IEC60958-1-2008.
3.Conform to the National standard of marine electric signal light's technical condition GB/T3028-1995.
Production authentication:
1.Approved by the CCS(China Classification Society),approved by ZY of China Fishery Inspection.
2.Passed the authentication of CE, the patent No. is ZL2003 3012 1972.9.
